[Yazaki]090 type 62 waterproofing series E type F terminal (belonging to WS) /F090WP-62E-S-P6YE [F090WP-62E-S-P6YE]

090 type 62 waterproofing series
The product contents that this product becomes the set product of F terminal and the wire seal for exclusive use of the E type 3 pole connector

Maker Yazaki Corporation
Series 62 waterproofing series E types
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F F

Correspondence electric wire size of the terminal AVS0.35-0.85mm2
Wire seal The yellow that it is for 6mm phi (P6)
One Attachment
By the combination mentioned above
It becomes that it supports an electric wire of AVS0.5-0.85 AVSS1.25 AVX/AEX 0.5

In the case of an unnecessary, a wire seal is this in a terminal simple substance
■Terminal simple substance

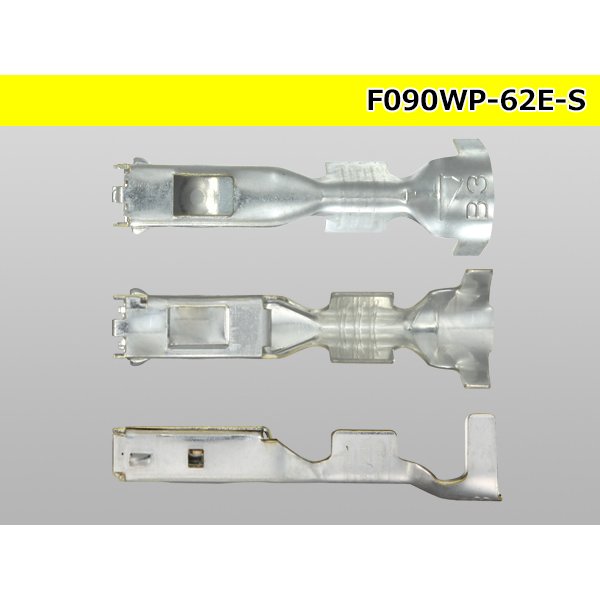

"F090WP-62E-S-wr" (small size) (0.3-0.85mm2)

It is available as a spare for the repair
■Wire seal "WS7157-3881-62E-P6YE"
The yellow that it is for 6mm phi (P6)
(AVS 0.5-0.85 AVSS1.25 AVX/AEX 0.5)
