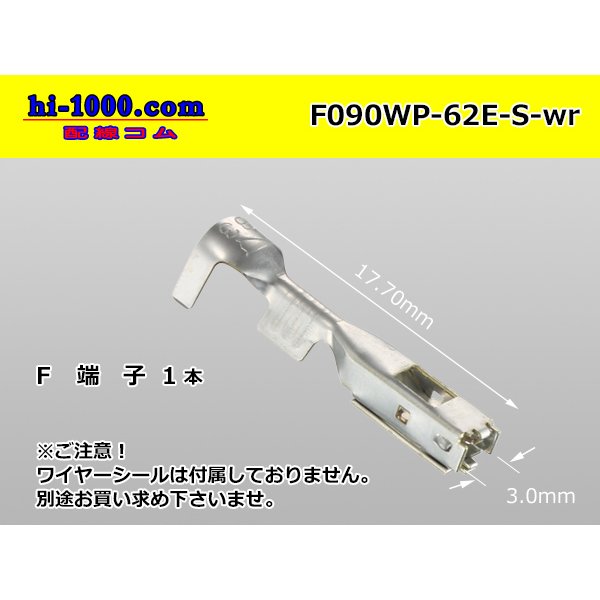

[Yazaki]090 type 62 waterproofing series E type F terminal (small size) /F090WP-62E-S-wr [F090WP-62E-S-wr]

As for this product, a female terminal (small size) simple substance is one.
＊The product contents that the wire seal is not attached

Maker Yazaki Corporation
Series 62 waterproofing series E types
Standard size 090
Waterproofing/non-waterproofing Waterproofing
M/F F
Correspondence electric wire size (mm2) of the terminal AVS0.35-0.85 (small size)
Wire seal Separate sale

The corresponding wire seal is this.
In addition, it is available as a spare
■Wire seal "WS7157-3881-62E-P6YE" yellow
(AVS 0.5-0.85 AVSS1.25 AVX/AEX 0.5) become that support an electric wire of 0.5-0.85 by the combination of this wire seals in the case of AVS.

The set product of a terminal and the wire seal (separately a sale product)
◆"A terminal (small size) and wire seal yellow"
F090WP-62E-S-P6YE
3 poles of 62E are for exclusive use.
