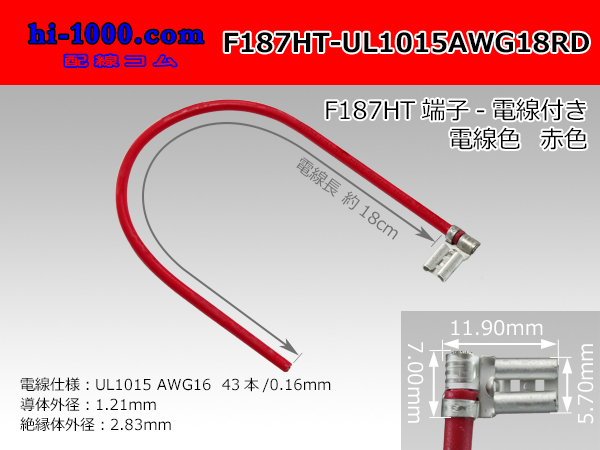

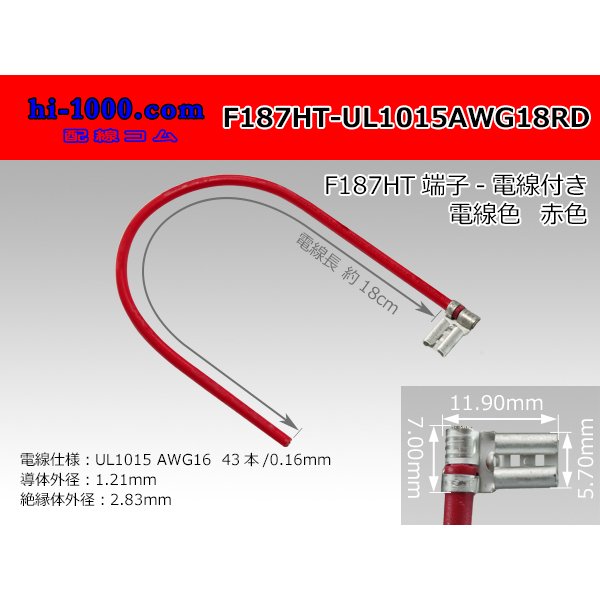

F187HT terminal UL1015- red AWG18 heat resistance electric wire/F187HT-UL1015AWG18RD [F187HT-UL1015AWG18RD]

I crimped it with hand tools, and pressure bonding did an electric wire with an exclusive applicator with a flag type terminal that work was difficult.

Product contents
Terminal part
Maker/series AMP TE drum
Standard size 187
M/F F (flag type)

Electric wire part
Hitachi Metals UL1015
Size 18AWG
Hue Red
Constitution 43/0.16mm
Conductor outer diameter 1.21mm
Insulator outer diameter 2.83mm

In the case of an unnecessary, an electric wire is this in a terminal simple substance
＊There is not the hand tool suitable for this terminal now.
◆"A terminal simple substance"
F187HT-sr
◆"Terminal + sleeve"
Enter, and F187HT and a point are the sets of the sleeve.

"A sleeve"
DFU187
*This sleeve is a type maintaining on an electric wire earlier.
"I pay the back sleeve"
DFUB187
