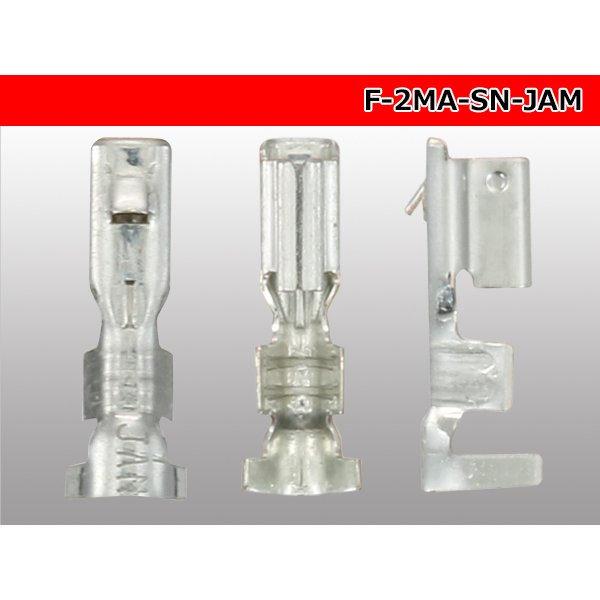

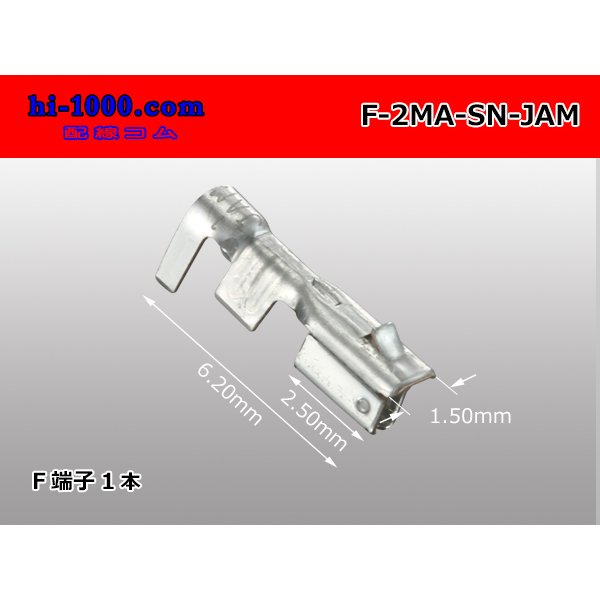

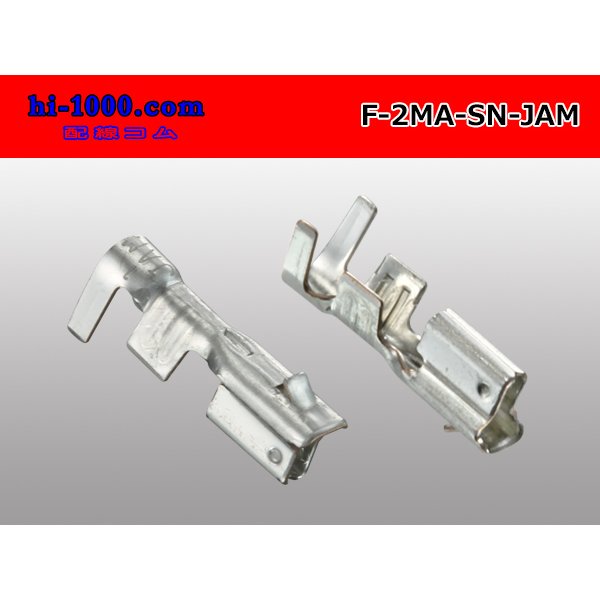

[JAM]SN series F terminal /F-2MA-SN-JAM [F-2MA-SN-JAM]

I cope with the F side connector of the SN series F edge child SN series made in JAM.

Product contents
Maker JAPAN AUTOMATIC MACHINE (JAM)
Series SN (it supports the F side)
Standard size －
Waterproofing/non-waterproofing Non-waterproofing
M/F F
Material/surface treatment Phosphor bronze/tin plating
An adaptation electric wire is 22-28AWG (0.08-0.32mm2)
Adaptation coating outer diameter 0.88-1.5mm

Recommended pressure bonding tool
Size crimps it for a small terminal and recommends work in the pressure bonding environment of the very small size about the processing.

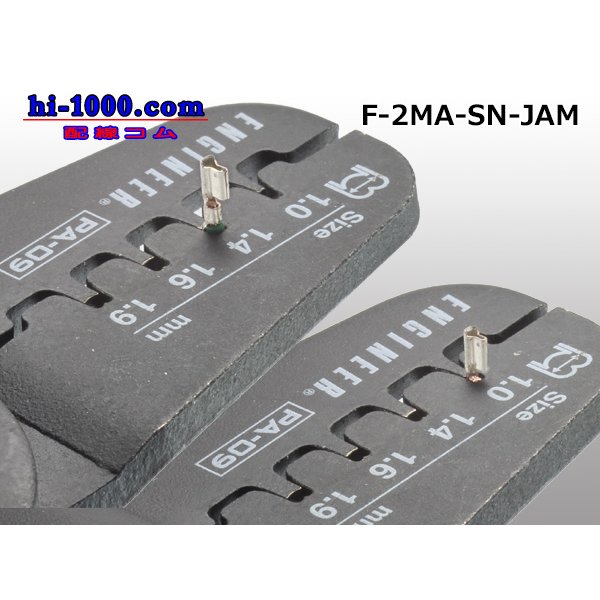

◆Product made in engineer exact pressure bonding pliers /PA-09
◆Product made in engineer exact pressure bonding pliers /PAD-11
◆The exchange dice for the engineer precision pressure bonding pliers PAD
/PAD-11S for 0.7-2.2mm
＊(as it is an exchange blade, you cannot use it in the simple substance)
