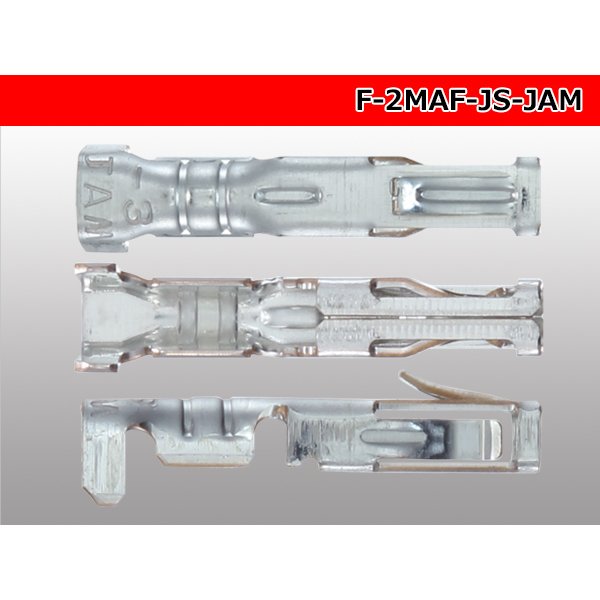

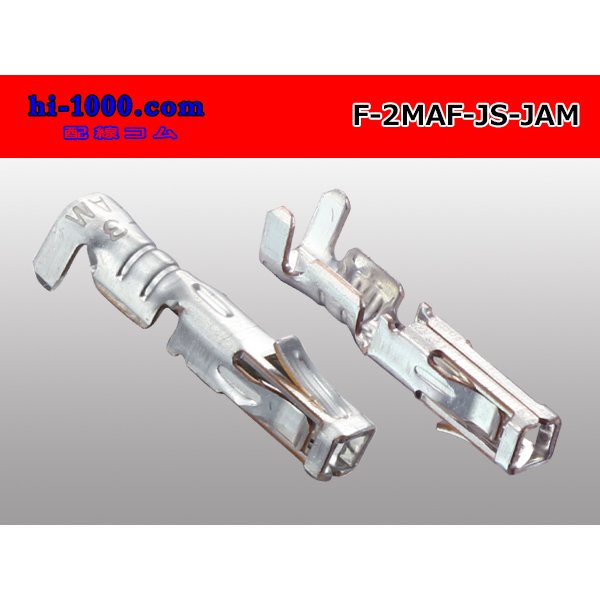

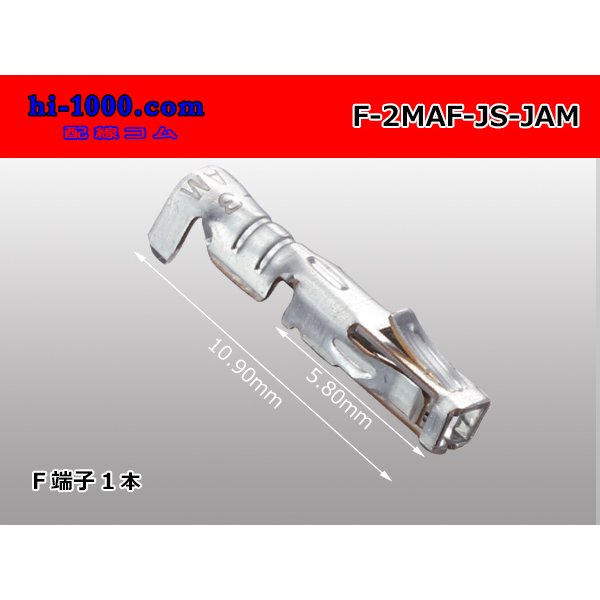

[JAM]JS series F terminal (small size) /F-2MAF-JS-JAM [F-2MAF-JS-JAM]

I cope with the F side connector of the JS series F edge child JS series made in JAM.
Correspondence connector "JAM-JS" series
This product becomes the small size and supports an electric wire of AVSS/AVSSB/AVSSC0.3.
Adaptation electric wire range AWG22-30 (... 0.3mm2)
Adaptation coating 0.88-1.7mm outside diameter
Recommended pressure bonding tool
"PA-09"
"PAD-11" PAD-11 (conductor part 1.3mm coating department 1.9mm) use electric wire AVSSC0.3f (it changes by the electric wire which is * one.)
In the case of an errand, it is ↓ with ultrathin electric cables (AVSS) of ↓* 0.5sq
I prepare large size terminal "F-2MA-JS-JAM-L" separately.
