[JST] PA series female terminal /F-JST-SPHD [F-JST-SPHD]

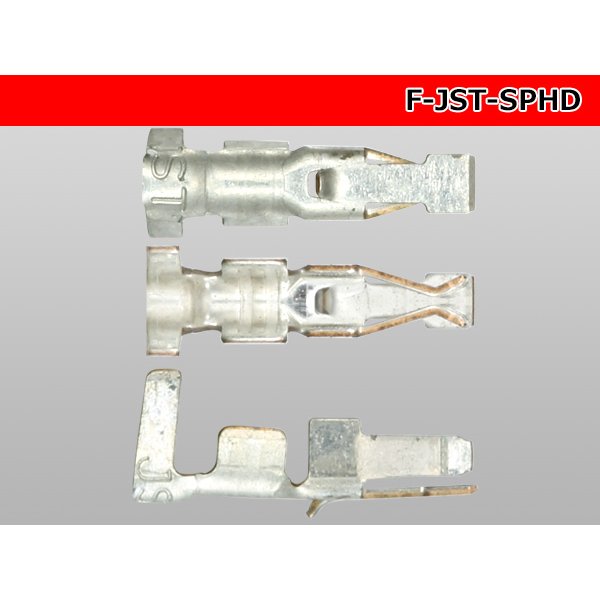

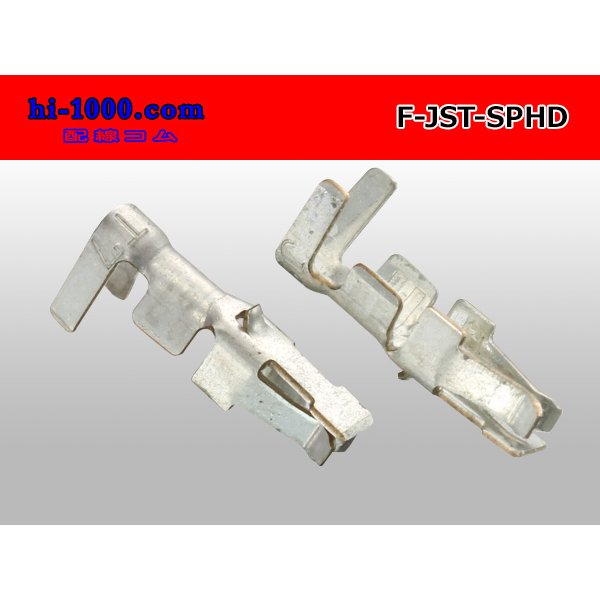

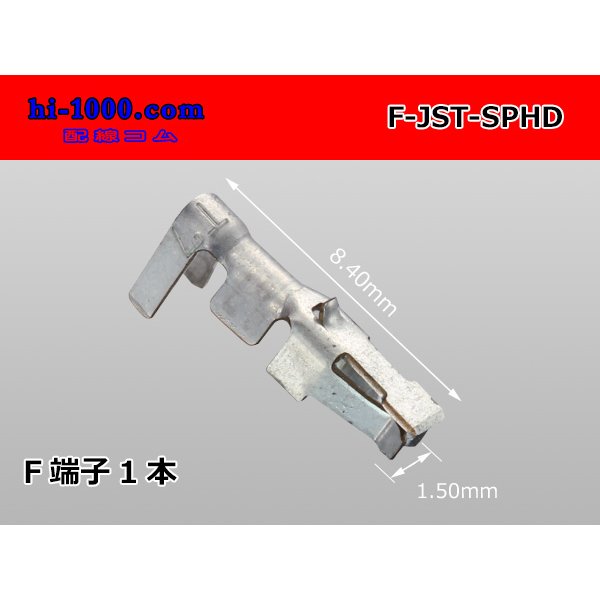

PA series female terminal (0.13-0.33mm2) /F-JST-SPHD made in JST

Application electric wire size 0.13-0.33mm2 (AWG26-22) electric wire finish 1.0-1.5mm outside diameter

It is a terminal adapting to the "PA series" made in JST F side connector.

Recommended pressure bonding tool "PAD-11" "PA-09."

■Pressure bonding construction example ■
PAD-11 (conductor part 1.0mm coating department 1.3-1.6mm) use electric wire AVSSC0.3f.

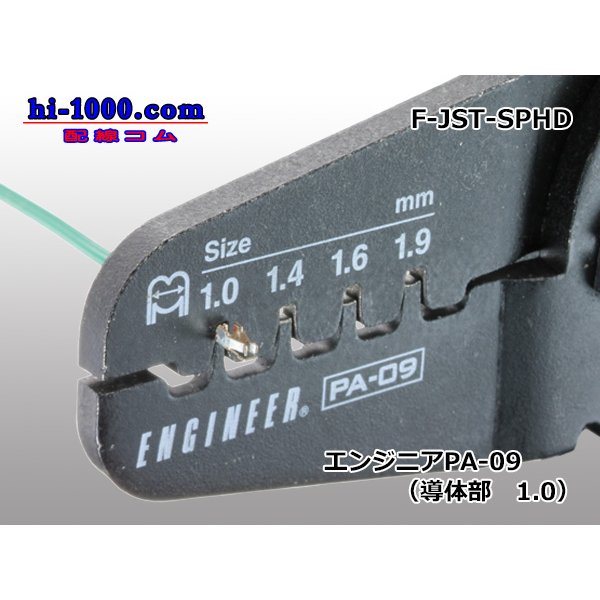

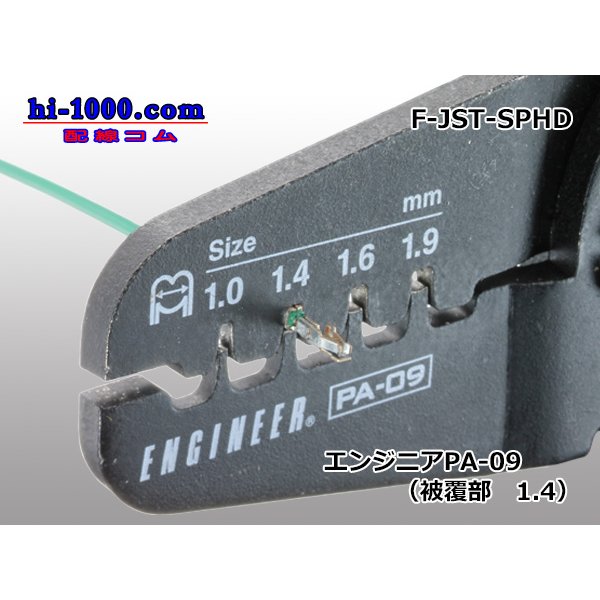

PA-09 (conductor part 1.0mm coating department 1.4-1.6mm) use electric wire AVSSC0.3f.
(I just change by the kind of the electric wire which is an example)
