[JST] broadcast Male terminal /M-JST-SPAL [M-JST-SPAL]

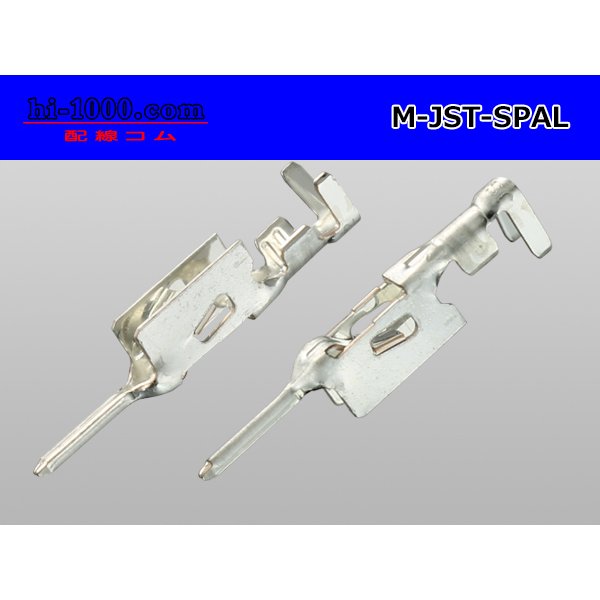

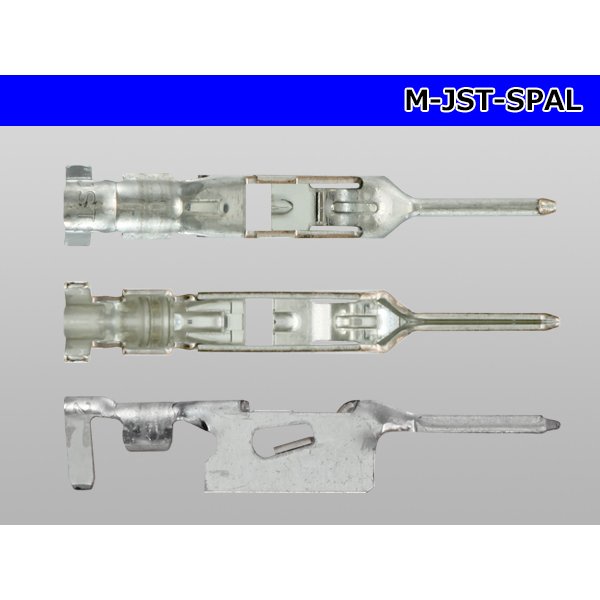

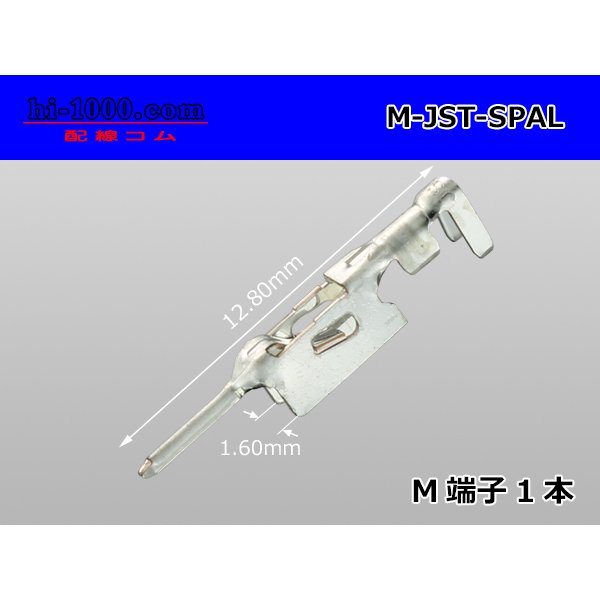

Male terminal /M-JST-SPAL for the PA series broadcast made in JST

Application electric wire size 0.13-0.33mm2 (AWG26-22) electric wire finish 1.0-1.5mm outside diameter

It is a terminal adapting to the "PA series" made in JST M side connector.

I crimp it and recommend work in the pressure bonding environment of the very small size about the processing.
Recommended pressure bonding tool "PA-09" "PAD-11."
PAD-11 (conductor part 1.0mm coating department 1.3-1.6mm) use electric wire AVSSC0.3f.
PA-09 (conductor part 1.0mm coating department 1.6mm) use electric wire AVSSC0.3f.
(I just change by the kind of the electric wire which is an example)
