[JST] XA series female terminal /F-XA-01-JST [F-XA-01-JST]

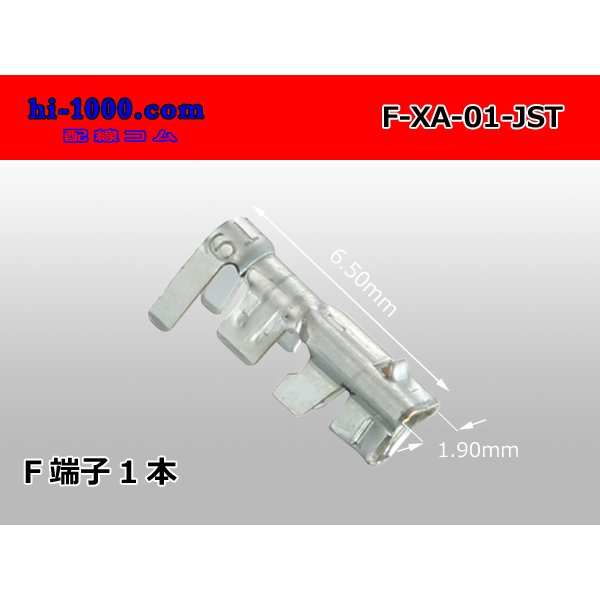

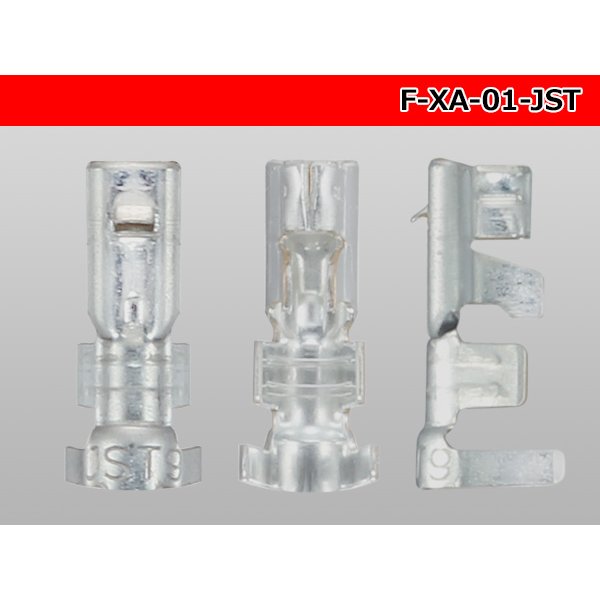

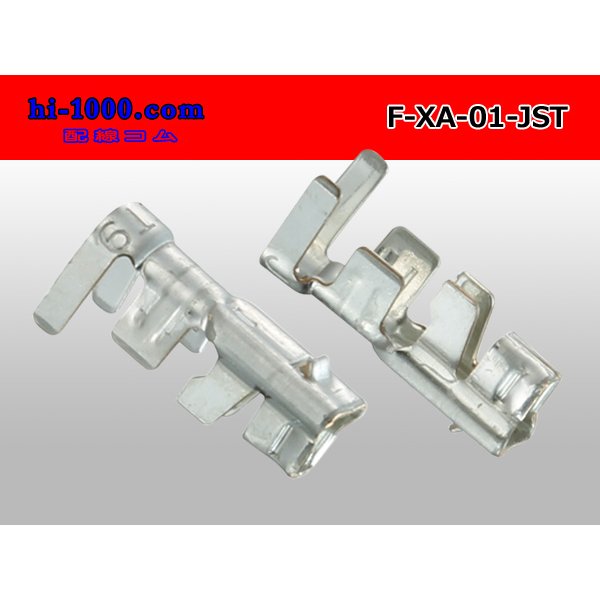

XA series female terminal /F-XA-01-JST
application electric wire size 0.22-0.5mm2 (AWG24-20)
electric wire finish 1.5-1.9mm outside diameter made in JST

It is a terminal adapting to the "XA series" made in JST F side connector.

Recommended pressure bonding tool "PAD-11" "PA-09"

■Pressure bonding construction example ■
PAD-11 (conductor part 1.3mm coating department 1.3-1.6mm) use electric wire AVSSC0.3f
PA-09 (conductor part 1.4mm coating department 1.4-1.6mm) use electric wire AVSSC0.3f
(I just change by the kind of the electric wire which is an example)
