●[SWS] AVSSB0.3f (1m)　 [color Red & Yellow stripe] /AVSSB03f-RDYE [AVSSB03f-RDYE]

This becomes flexible for "AVSS0.3YEGRE" of the same color.

A price is a price around 1m.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 100m as 1 reel becomes 100m.

Use I use it in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVSSB thins an insulator of CPAVS more, and be superior to cold-resistant flexibility, lightweighting thin; a big effect is provided to pass.
Because coating is light, I am suitable for production such as the wire harness.
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Pole escalope low pressure electric wire for the AVSSB(f-type) car
Standard size 0.3(f) flexible constitution
Number of the wires/wire diameter (this /mm) 15/0.18
Conductor calculation cross section (mm2) 0.3817
Conductor outer diameter (mm) 0.8
Insulator thickness (mm) 0.35
Finish outer diameter (mm) 1.5-1.7

Current tolerance in case of 0.3(f)
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 11 10 9 7 6 4

※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.

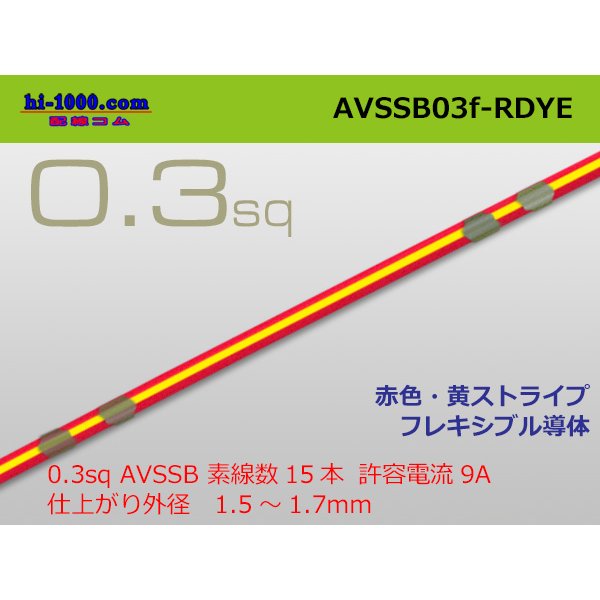

※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
