●[SWS] AVSS1.25 (1m) [color Black] /AVSS125-BK [AVSS125-BK]
●[SWS] AVSS1.25 (1m) [color Black] /AVSS125-BK
[AVSS125-BK]
Price: US$2.00
Weight: 15g
Stock:469
A price is a price around 1m.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 800m as 1 reel becomes 800m.
Use I cause use appearance in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVSS is the electric wire which thinned an insulator of AVS more.
JASO D611 conformity
※Please note that this product is not flexible constitution.
Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSS car
Standard size 1.25
Number of the wires/wire diameter (this /mm) 19/0.29
Conductor calculation cross section (mm2) 1.255
Conductor outer diameter (mm) 1.5
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 2.1-2.2
Current tolerance in case of 1.25 Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 23 21 19 16 13 9
Heat-resistant class 80 degrees Celsius

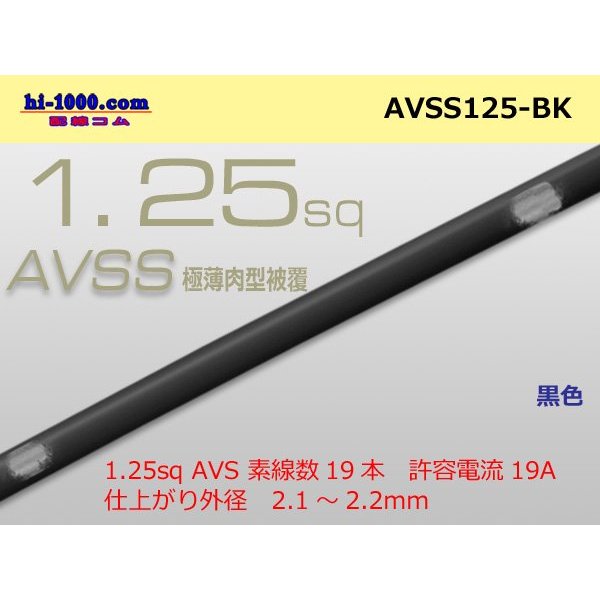

※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
※The heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
An example: When 10 meters are necessary, please input with "10" to the number of the purchase.
I send it in "a connected state" to the purchase amount.
But the upper limit becomes number of the stock or 800m as 1 reel becomes 800m.
Use I cause use appearance in (four of them, two) automotive low-pressure conductive trace.
Characteristic AVSS is the electric wire which thinned an insulator of AVS more.
JASO D611 conformity
※Please note that this product is not flexible constitution.
Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSS car
Standard size 1.25
Number of the wires/wire diameter (this /mm) 19/0.29
Conductor calculation cross section (mm2) 1.255
Conductor outer diameter (mm) 1.5
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 2.1-2.2
Current tolerance in case of 1.25 Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 23 21 19 16 13 9
Heat-resistant class 80 degrees Celsius
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
※The heat-resistant class is conductor best allowable temperature when 10,000 hours were used as an indication at accumulation electricity time.
※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
