■[SWS] AVSSC0.3f spool 100m Winding 　 [color Red & Blue stripe] /AVSSC03f-100-RDBL [AVSSC03f-100-RDBL]

A price is a price of 1 reel (100m).

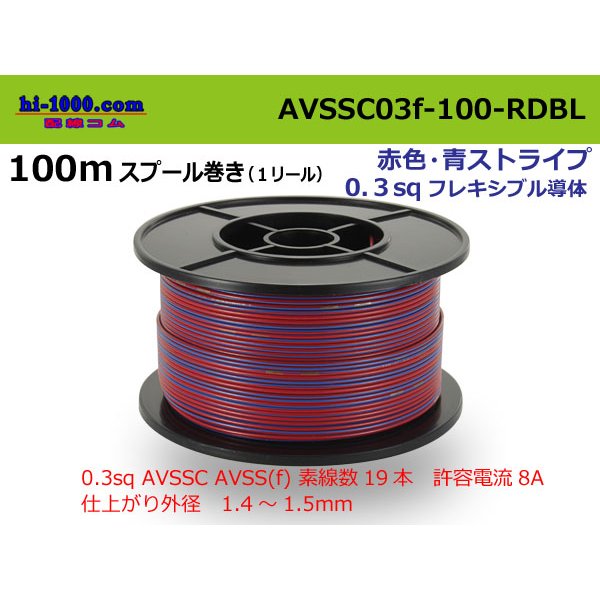

I send it in the state that I bound a spool with like an image.

Use I use it in the low-pressure conductive trace of automotive (four-wheeled mainly)
Characteristic AVSSC is Sumitomo name of AVSS(f).
It is the electric wire which is superior to AVSS in flexibility.
Because coating is light, I am suitable for production such as the wire harness.
Heat-resistant class 80 degrees Celsius

Maker Sumitomo Wiring Systems
Series Escalope low pressure electric wire (escalope electric wire type 2) for the AVSSC(f-type) car
Standard size 0.3(f) flexible constitution

Number of the wires/wire diameter (this /mm) 19/0.16
Conductor calculation cross section (mm2) 0.3821
Conductor outer diameter (mm) 0.8
Insulator thickness (mm) 0.3
Finish outer diameter (mm) 1.4-1.5

Current tolerance in case of 0.3(f)
Ambient temperature (℃) 20 30 40 50 60 70
Current tolerance (A) 10 10 8 7 6 4

※The current tolerance is the electric current that conductor saturation temperature becomes the heat-resistant temperature under each ambient temperature.
※The current tolerance in the image is notation in case of ambient temperature 40 degrees.
