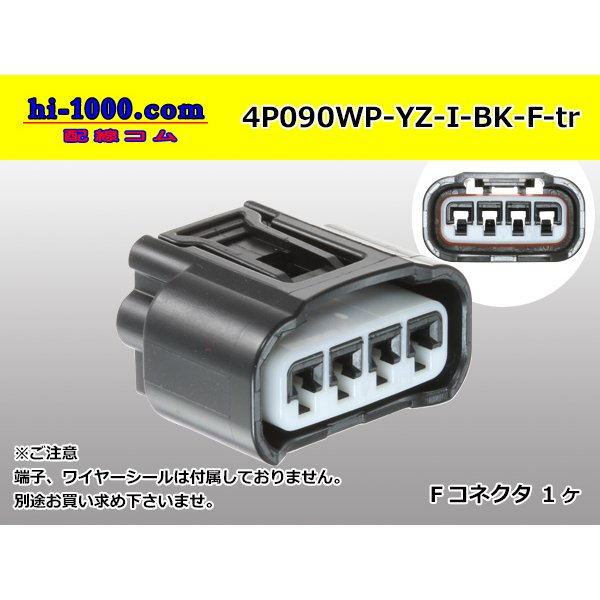

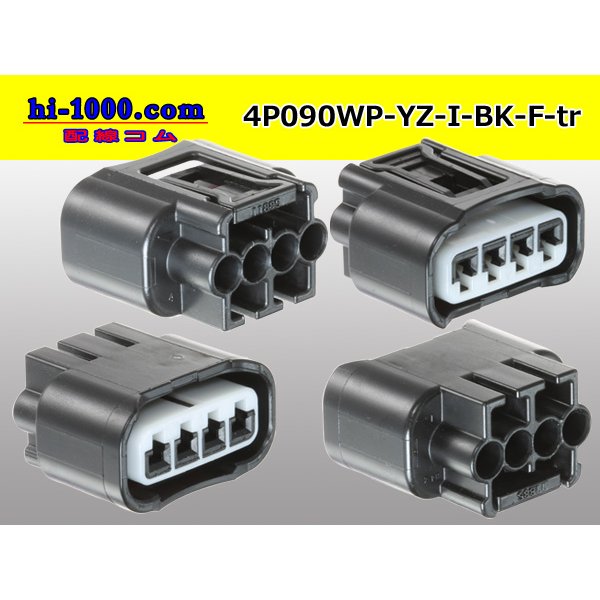

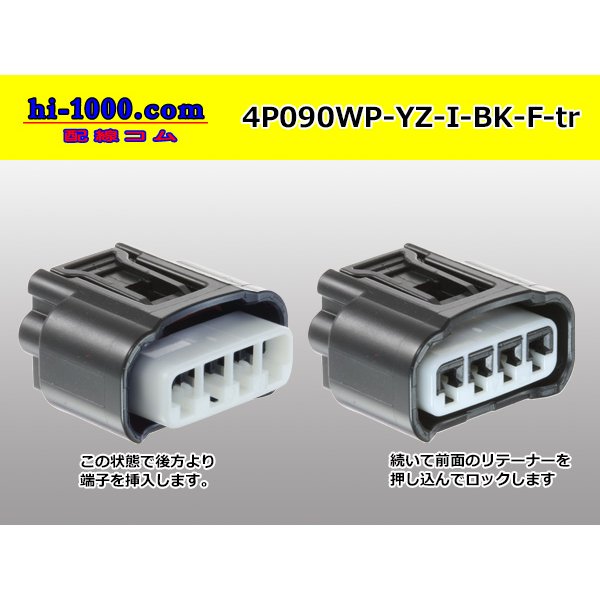

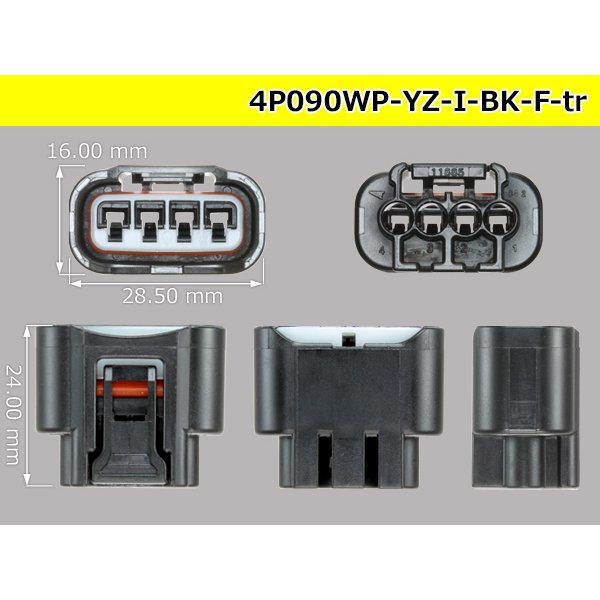

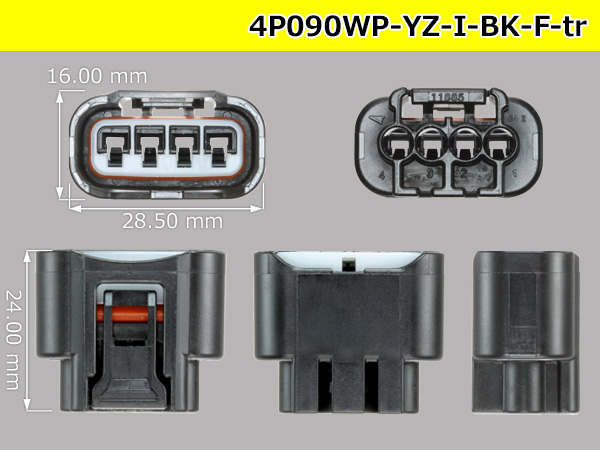

●[yazaki] 090II waterproofing series 4 pole F connector[black] (no terminals)/4P090WP-YZ-I-BK-F-tr [4P090WP-YZ-I-BK-F-tr]

This product is only the F side connector. Please buy F terminal, the wire seal separately.

In addition, the M side of the counterpart is not included, too; please buy it separately.

A Toyota pure article number 90980-11885 equivalency product.




Corresponding terminals separately prepare it as follows.

Please find necessary amount.

In addition, it is available as a spare for the repair.




■F terminal + wire seal

“F090WP-TS"

■F terminal simple substance

“F090WP-TS-wr"

■Wire seal TS waterproofing series

"WS7165-0395TS"

■Dummy stopper

"7160-9465HM"

I use it for the part without the terminal



■The terminal with the electric wire is recommended!

“F090WP-TS-AVS05"



There is not the setting of the fitting counterpart



I am not published in the catalogue of the maker.

In Yazaki Corporation, it is thought that it is not manufactured from a connector simple substance.

(the M side is not a connector simple substance, and it is thought that I am molded in one body for apparatus direct connection use)

＊The ignition coil of the image is a use example, is no containing to a product.
