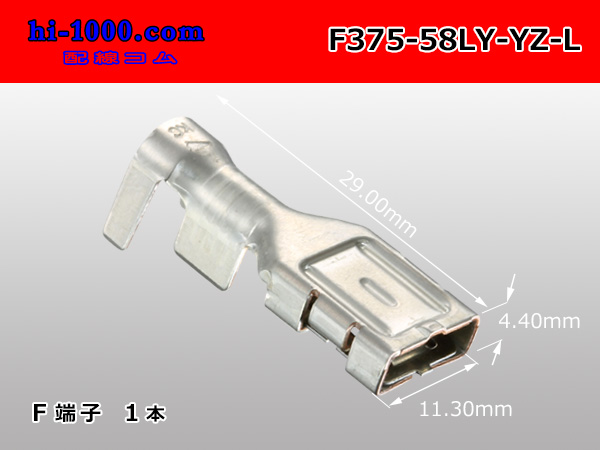

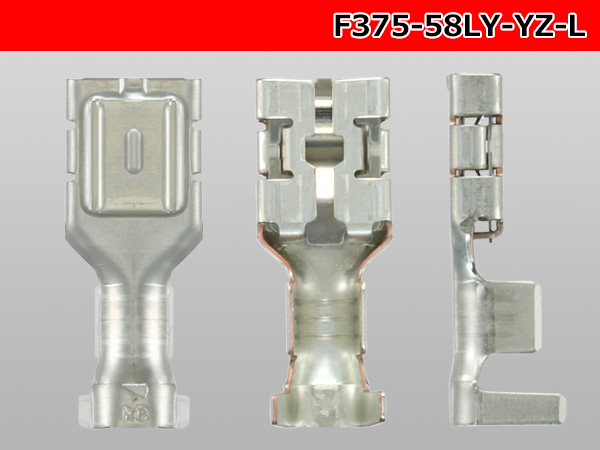

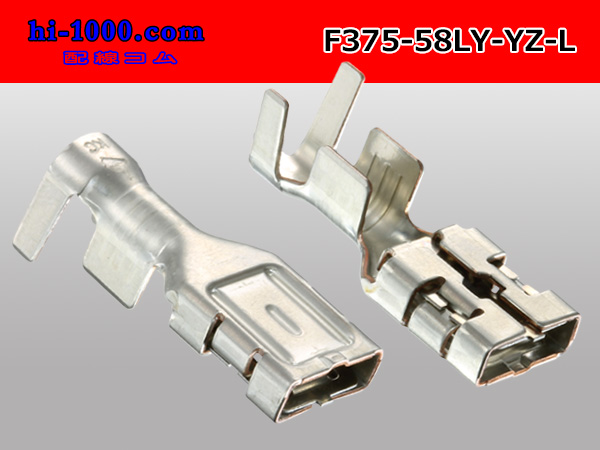

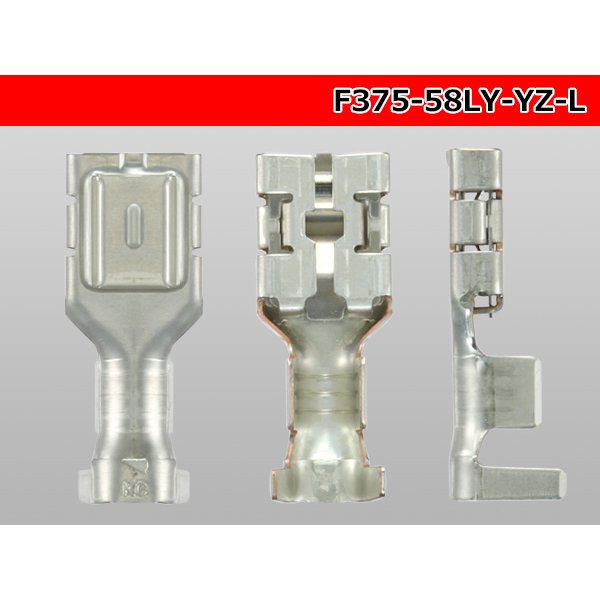

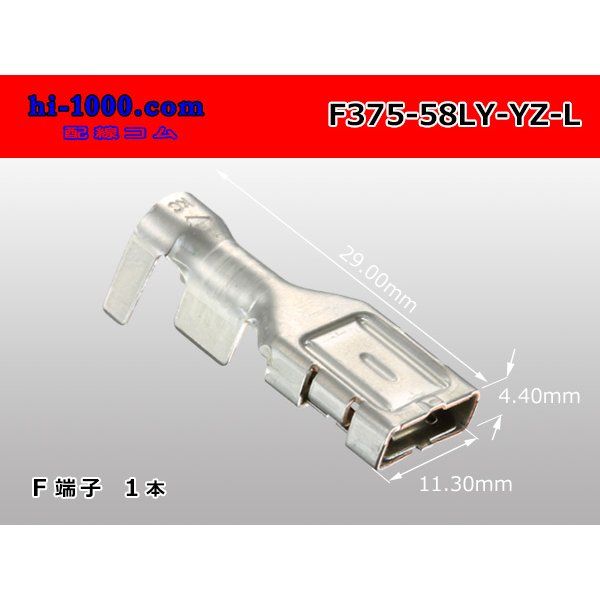

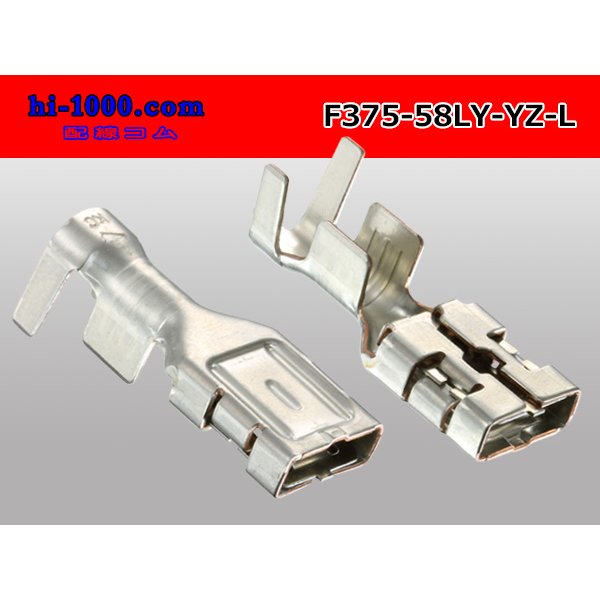

■Yazaki 58 connector L | Y | L-MC type 375 type non-waterproofing F terminal (large size) /F375-58LY-YZ-L [F375-58LY-YZ-L]

■A maker: Yazaki Corporation
■Series: 58 connectors
■A type: I cope with three types of connectors of L/Y/L-MC each.
■A standard: 375 (9.5mm)
■Electric wire adaptation size: AV/AVS 5.0-8.0mm2
■Material: The body: Copper compound metal, a bounce department: Stainless steel
■Board thickness: 0.57mm (actual survey)
■Surface-treat: Tin plating
■A corresponding connector: "1P375-91L-MC-YZ-BK-F-tr" (L-MC type)
＊I recommend use in the environment where there is large-scale pressure bonding.
●A recommended pressure bonding tool: "BCR-0430"
It supports open barrel-style large-scale size.
＊When I perform pressure bonding of this product in "BCR-0430", I would like pressure bonding processing in the pressure bonding of the conductor part in the direction that I showed to the image by all means.
