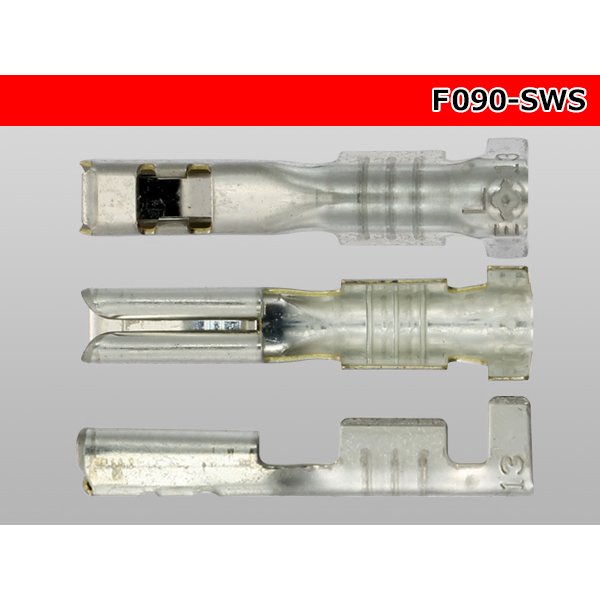

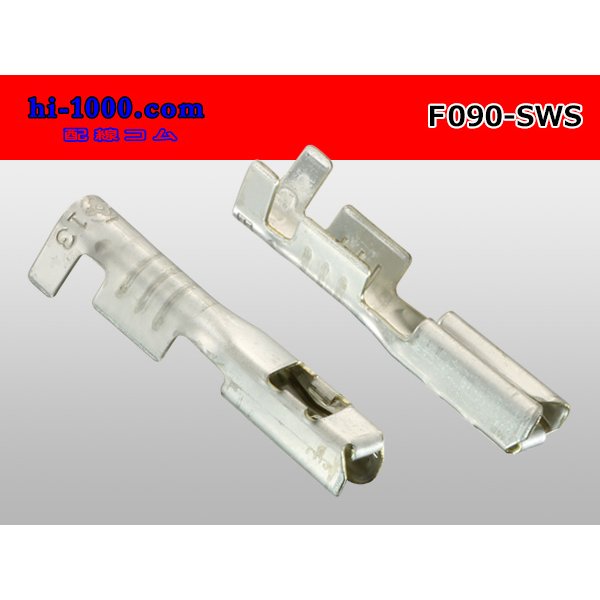

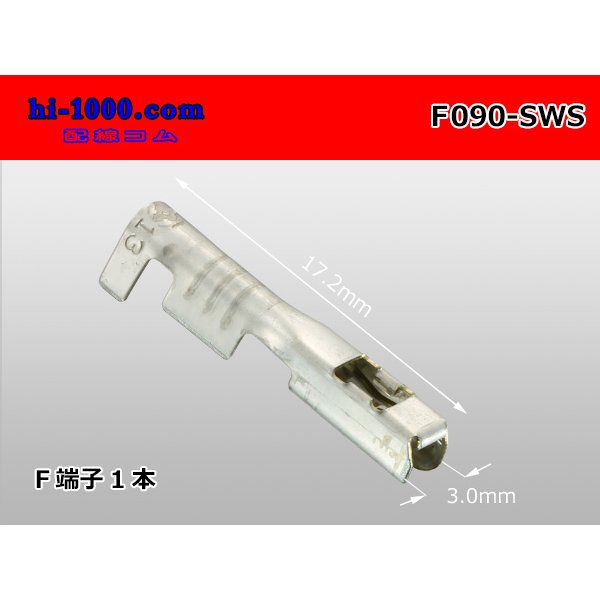

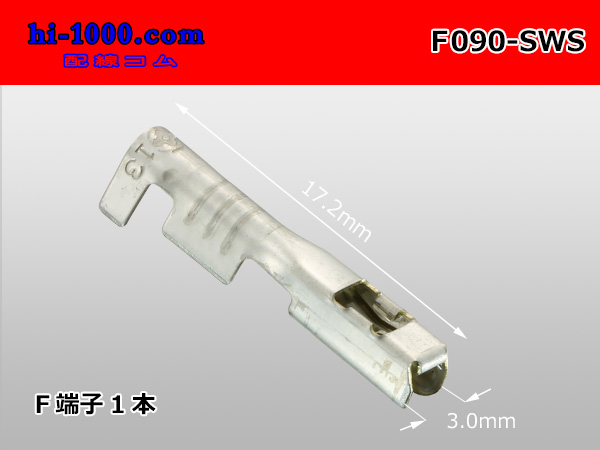

★Stock limit ★090 model HM | made by Sumitomo Wiring Systems MT | DS | HD series F terminal /F090-SWS [F090-SWS]

●090 model HM | made by Sumitomo Wiring Systems MT | DS | HD series F terminal /F090-SWS (this product is one price.) A maker: Sumitomo Wiring Systems
A standard: 090 type
A name: 2.3(090) type
＊A maker model number supporting the female side of the 090 model connector HM/MT/DS/HD series made by Sumitomo Wiring Systems: 8240-4422

Application electric wire size: 0.5-1.25mm2 (AVS/CAVS)
Electric wire finish outer diameter: 1.6-2.5mm
Materials: Brass
Surface-treat: Sn plating board thickness: 0.25mm

※A form is the same, and there is the product of the other maker, too.
"F090" (product made by Yazaki Corporation)
It is available to "F090-TR" connector having the same it (product made by TOKAI RIKA).

※It is the product of the stock limit.

Recommended pressure bonding tool "PAD-13," "even other P-706" is possible
＊Indication of the pressure bonding processing
"PAD-13" conductor part 2.5-2.8 cover abdomen 2.8-3.1 "P-706" conductor part 2.4M cover abdomen 2.4H (it may be just mixed up by an electric wire to use which is an indication.)
