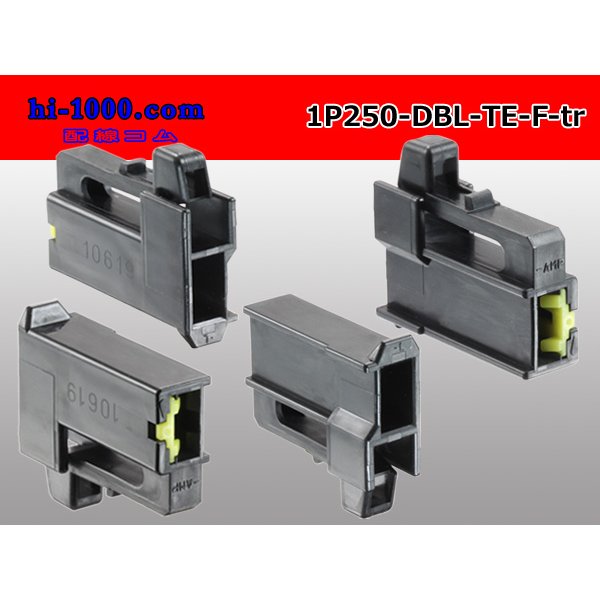

Product made in TE 250 type double lock series 1 pole F connector (according to the terminal) /1P250-DBL-TE-F-tr [1P250-DBL-TE-F-tr]

As this product is only the F side connector, and the terminal is not included, please buy it separately.
Toyota pure article number 90980-10619 equivalency product
In addition, there is not handling on the M side of the counterpart now.
In the case of use, please be careful about fitting shapes in Horne. In addition, I do not cope with Horne of the bipolar type.

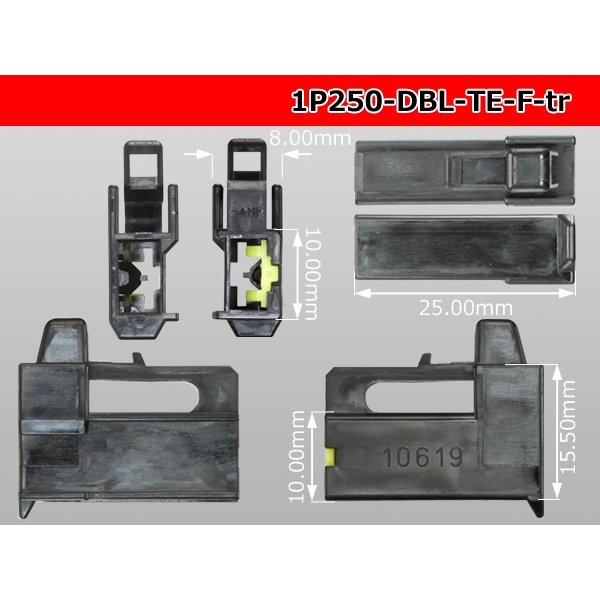

Product contents
A maker: TE (AMP)
Series: Double lock connector standard size: 250
Quality: PBT
A hue: Black
Non-waterproofing: F
A pole number: 1
A terminal: Separate sale

The corresponding terminal separately prepares it as follows.
Please find necessary amount
In addition, it is available as a spare for the repair.

■F terminal simple substance "F250-SMDS"
Application electric wire size 0.5-2.0mm2
Electric wire finish 1.6-3.1mm outside diameter

There is not handling of the fitting counterpart now

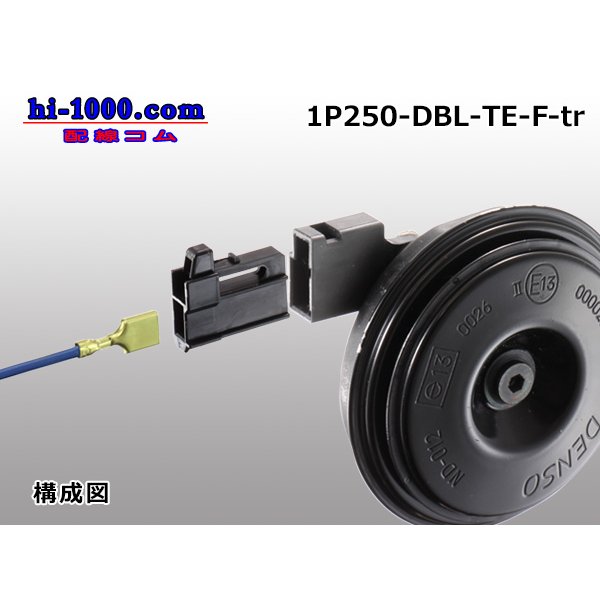

The thing except the connector in the image is for explanation, and it does not include it in a product.

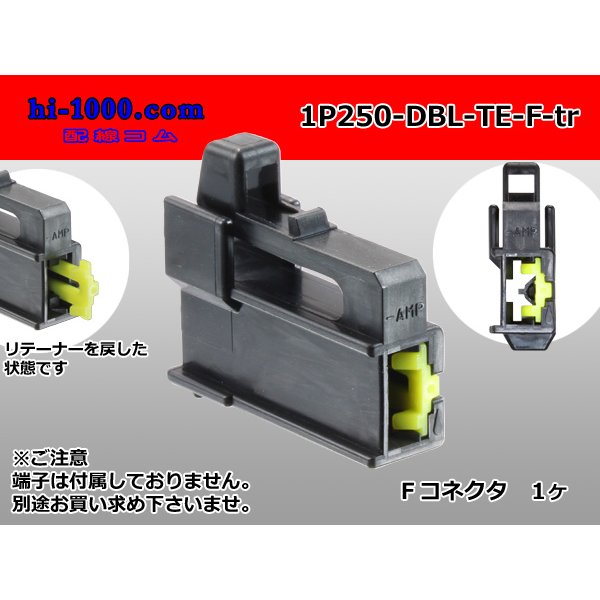

＊When insert a terminal; is careful
Please note that a terminal does not enter when Retainer (yellow parts) is pushed.
You insert a terminal in the state that Retainer is over by all means from behind, and you push Retainer, and please lock it.
