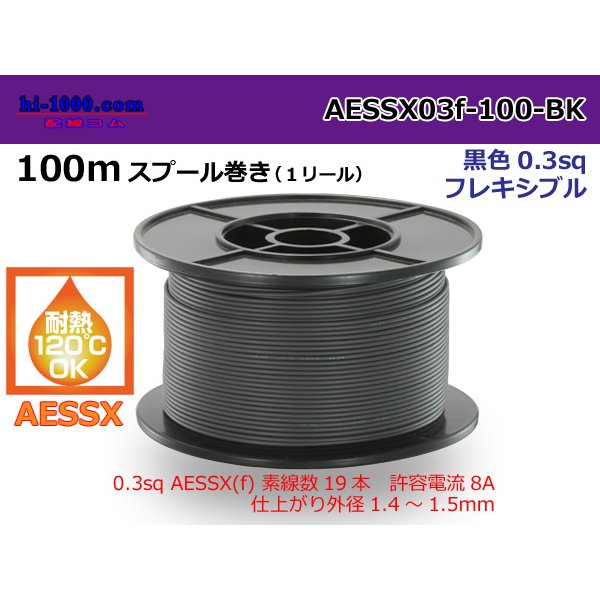

Made by Yazaki CorporationHeat-resistant low-pressure electric wire AESSX0.3f 100m spool roll black /AESSX03f-100-BK [AESSX03f-100-BK]

A price is a price around 1 reel 100m..

A use: In (four of them, two) automotive low-pressure conductive trace, I can use heat-resistant (120 degrees Celsius) for the required part.
A characteristic: The heat-resistant PE insulation electric wire which gave electron beam irradiation bridging in AVSS and monomorphism.

A maker: Yazaki Corporation
Series: Pole escalope type crosslinked polyethylene insulation heat resistance low pressure electric wire for the car

Standard size: 0.3(f)

Number of the wires/wire diameter (this /mm): 19/0.16
Conductor calculation cross section (mm2) : 0.3812
Conductor outer diameter (mm): 0.8
Insulator thickness (mm): 0.3
Finish outer diameter (mm): 1.4
A current tolerance level (A): 8

※The current tolerance is conductor best allowable temperature 120 degrees Celsius, a calculated value in case of ambient temperature 80 degrees Celsius.
