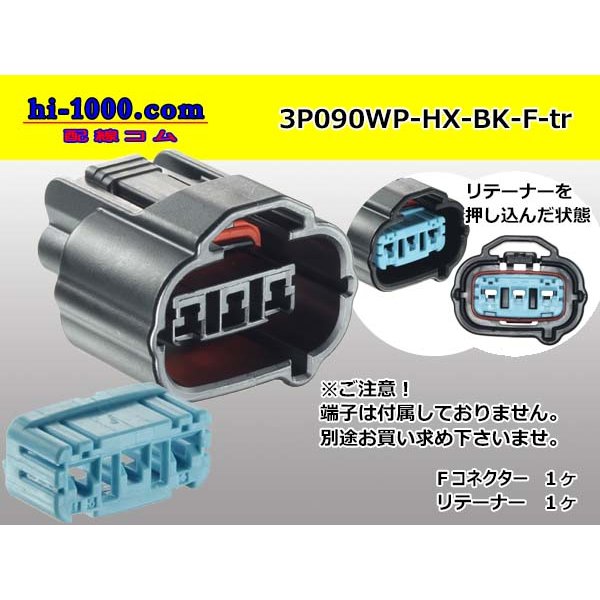

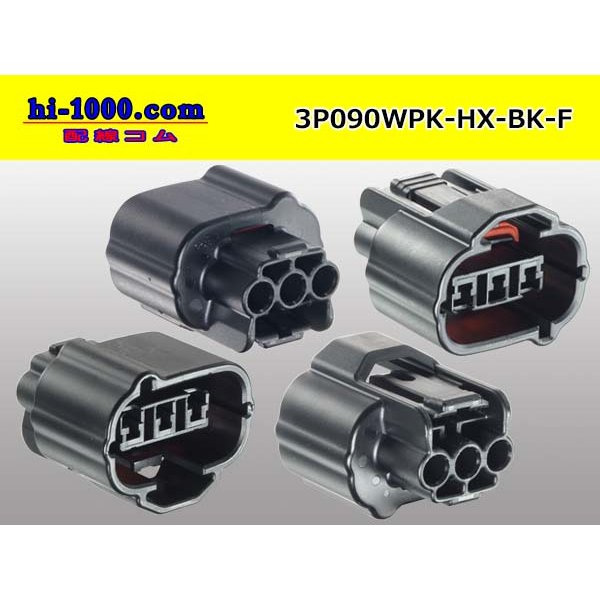

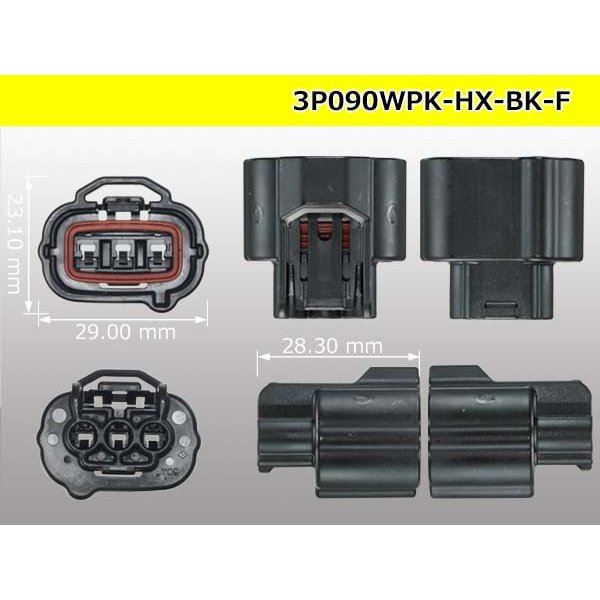

●[sumitomo] Tripolar 090 type HX waterproofing series F connector black (no terminals) /3P090WP-HX-BK-F-tr [3P090WP-HX-BK-F-tr]

This product is F side connector and Retainer.
Please buy F terminal, the wire seal separately.

Corresponding terminals separately prepare it as follows.
Please find necessary amount
In addition, it is available as a spare for the repair.

■F090WP-HX-MS ■
With F terminal (medium size)
Green wire seal for 2.1-2.9mm (small size)
■F090WP-HX-DL-SL-wr ■
It is F terminal (medium size) simple substance
It adapts to an electric wire of the 0.85-1.25 square millimeter
■WS7165-0194HX-GRE ■
Wire seal
Green for electric wire finish 2.1-2.9mm outside diameter
■DP7165-0193HX-GRE ■
Dummy stopper
Please use it on the part without the terminal

There is not the setting of the fitting counterpart.
I am not published in the catalogue of the maker.
In Sumitomo Wiring Systems, it is thought that it is not manufactured from a coupler simple substance.
(the M side is not a coupler simple substance, and it is thought that it is at one with supplementary containers or an apparatus and is molded)
