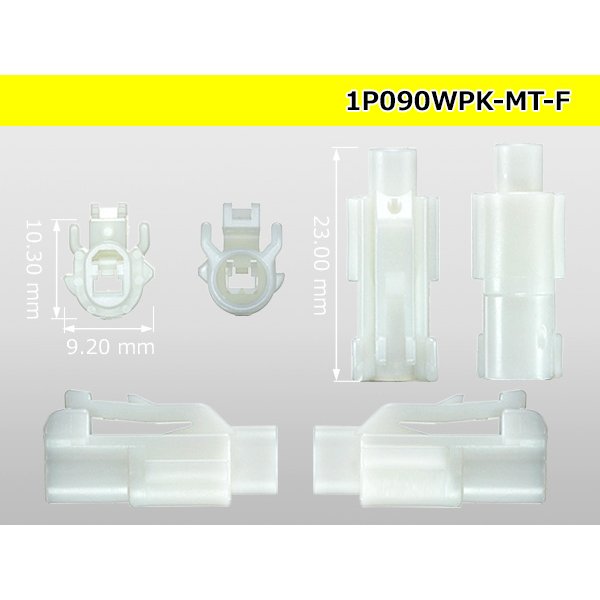

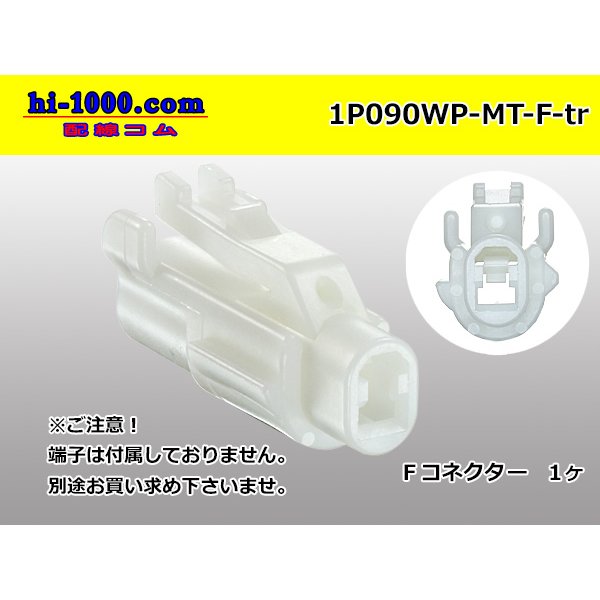

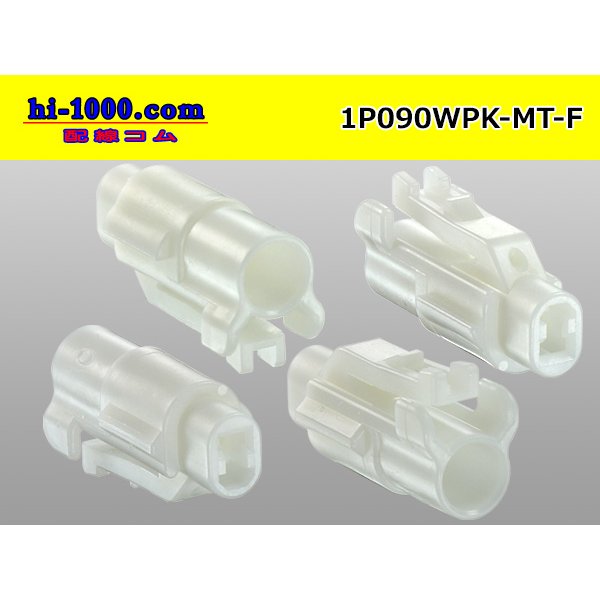

●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr [1P090WP-MT-F-tr]
![Photo1: ●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/14197562_o1.jpg)
![Photo2: ●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/14197562_o2.jpg)
![Photo3: ●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr](https://www.hi-1000ec.com/data/hi-1000/product/product/14197562_o3.jpg)
●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr
[1P090WP-MT-F-tr]
Price: US$3.44
Weight: 15g
Stock:69
This product is only the F side connector. Please buy F terminal, the wire seal separately.
In addition, the counterpart is not included, too; please buy it separately.
The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.
■F terminal simple substance
"F090WP-HM-HW-MT-wr"
■Wire seal
"WS7160-8234HM-MT"
By two points of combinations mentioned above
It supports an electric wire of AVSSB0.5/AVS0.5-1.25.
■Dummy stopper
"7160-9465HM"
I use it for the part without the terminal
■The terminal with the electric wire is recommended!
"F090WP-HM-MT-AVS05"
The fitting counterpart becomes this
◆1P090WP-MT-M-tr (only as for the connector)
In addition, the counterpart is not included, too; please buy it separately.
The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.
■F terminal simple substance
"F090WP-HM-HW-MT-wr"
■Wire seal
"WS7160-8234HM-MT"
By two points of combinations mentioned above
It supports an electric wire of AVSSB0.5/AVS0.5-1.25.
■Dummy stopper
"7160-9465HM"
I use it for the part without the terminal
■The terminal with the electric wire is recommended!
"F090WP-HM-MT-AVS05"
The fitting counterpart becomes this
◆1P090WP-MT-M-tr (only as for the connector)
●[sumitomo] 090 type MT waterproofing series 1 pole F connector [white]（no terminals）/1P090WP-MT-F-tr
[1P090WP-MT-F-tr]
Price: US$3.44
Weight: 15g
Stock:69
