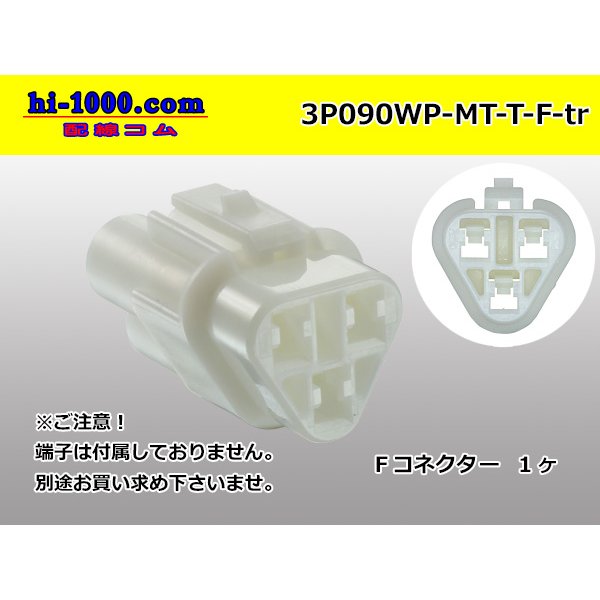

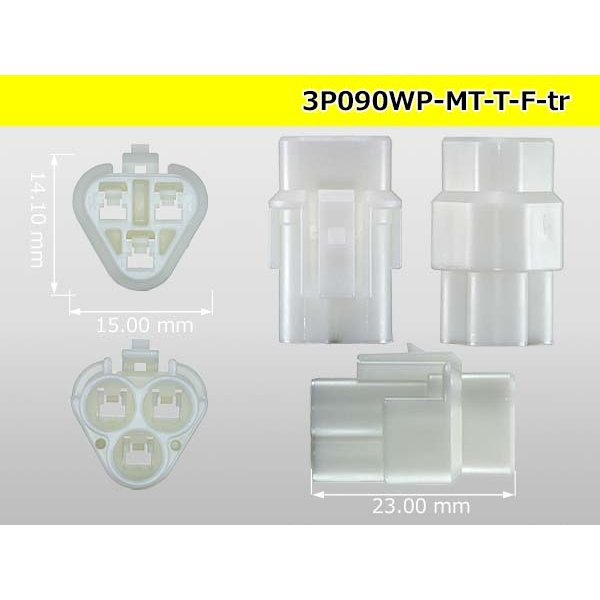

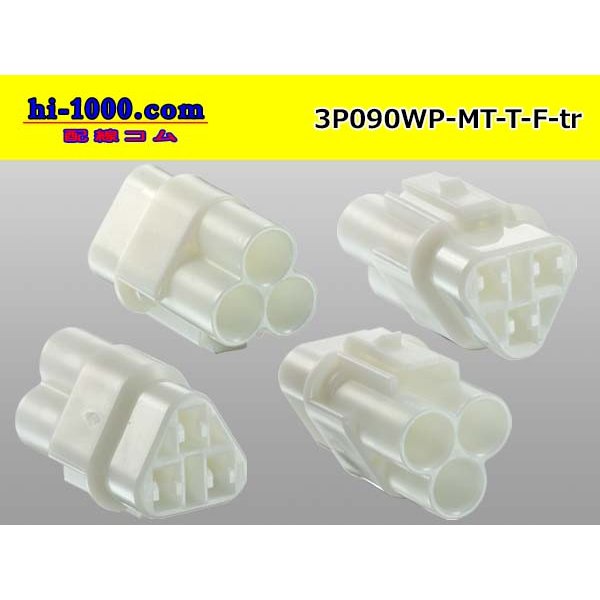

●[sumitomo] 090 type MT waterproofing series 3 pole F connector（triangle type）[white]（no terminals）/3P090WP-MT-T-F-tr [3P090WP-MT-T-F-tr]

This product is F side connector.
Please buy the F terminal, the wire seal and dummy plug are separately.
In addition, the M side connector is not included, too.
please buy it separately.


Brand： Sumitomo Wiring Systems
Series：MT waterproofing series
Standard size：090
Hue：White（triangular shape）
Gender：Female
Number of Positions：Waterproofing 3 Position
Terminal：selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆M side connector（No terminals)
"3P090WP-MT-T-M-tr"

■F terminal + wire seal
"F090WP-HM-MT"
(AVSSB0.5/AVS0.5-1.25mm2)

■F terminal individually
"F090WP-HM-HW-MT-wr"

■Wire seal
"WS7160-8234HM-MT"

■Dummy plug
"7160-9465HM"
Please use without terminals.

★The terminal with the electric wire
"F090WP-HM-MT-AVS05 "
