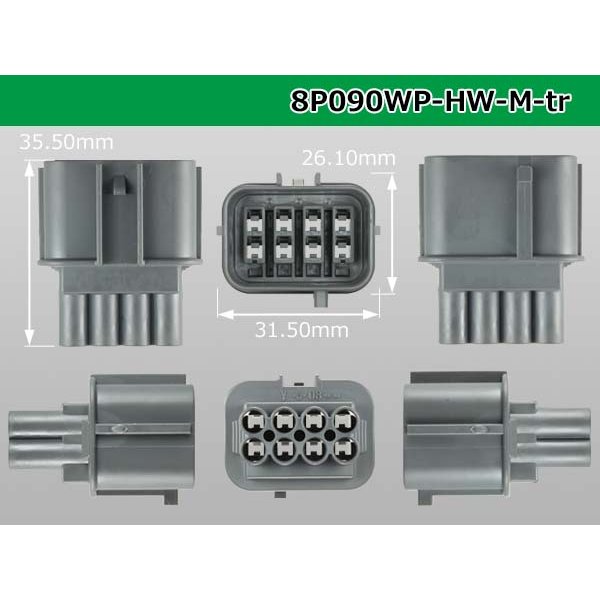

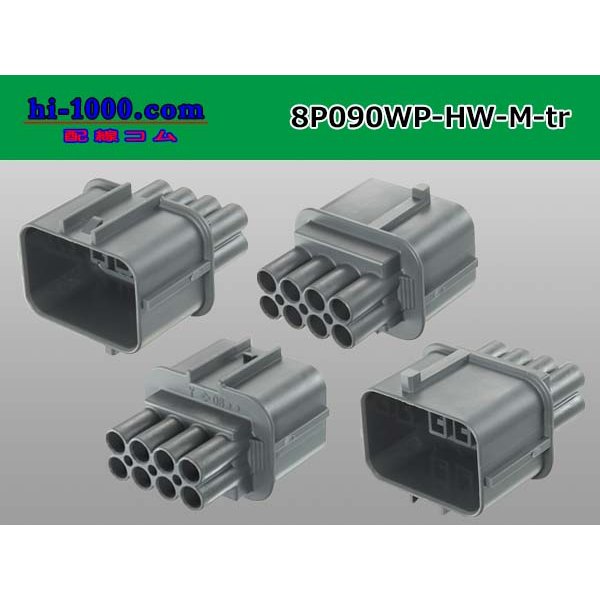

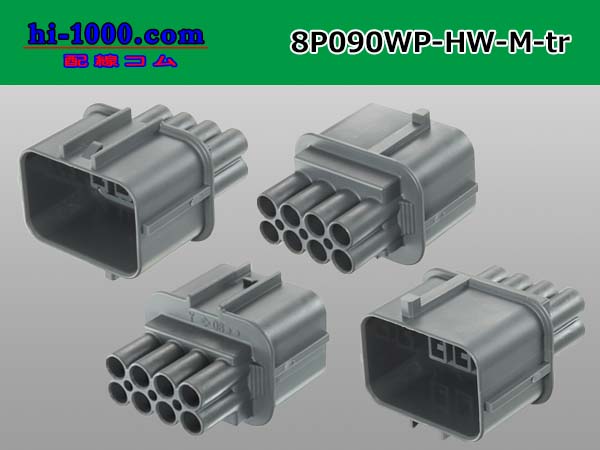

●[sumitomo] 090 type HW waterproofing series 8 pole M connector [gray]（no terminals）/8P090WP-HW-M-tr [8P090WP-HW-M-tr]

This product is M side connector.
Please buy the M terminal, the wire seal and dummy plug are separately.
In addition, the F side connector is not included, too.
please buy it separately.


Brand： Sumitomo Wiring Systems
Series：HW waterproofing series
Standard size：090
Hue：Gray
Gender：Male
Number of Positions：Waterproofing 8 Position
Terminal：selling separately


Corresponding terminals separately prepare it as follows.
Please find necessary amount.
In addition, it is available as a spare for the repair.



◆F side connector（No terminals)
"8P090WP-HW-F-tr"


■M terminal + wire seal
"M090WP-HW"
（for AVSSB0.5/AVS0.5-0.75）

■M terminal individually
"M090WP-HM-HW-MT-wr"

■Wire seal（S type/blue）
"WS7165-0118HW"
（electric wire 1.7-2.4mm outside diameter)

If you use "AVSS/AVS1.25mm2" wire, please select this Please purchase a combination of "brown" wire seals and individual terminals.
■Wire seal（M type/brown）
"WS7165-0118HW"
（electric wire 2.1-2.9mm outside diameter)

■Dummy plug
"7161-9787HW"
Please use without terminals.

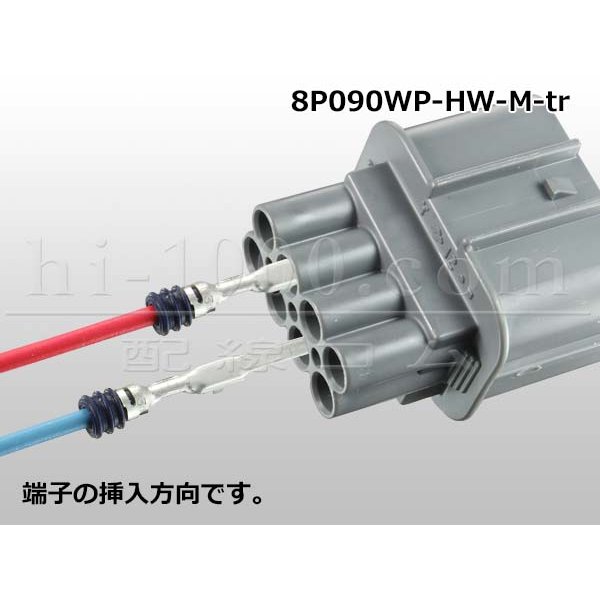

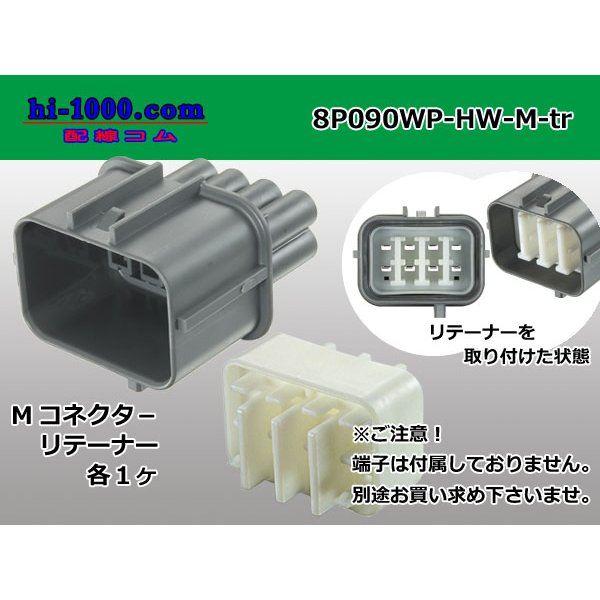

After inserting the terminals into the connector, insert the supplied retainer and Insert the supplied retainer and lock it in place.
