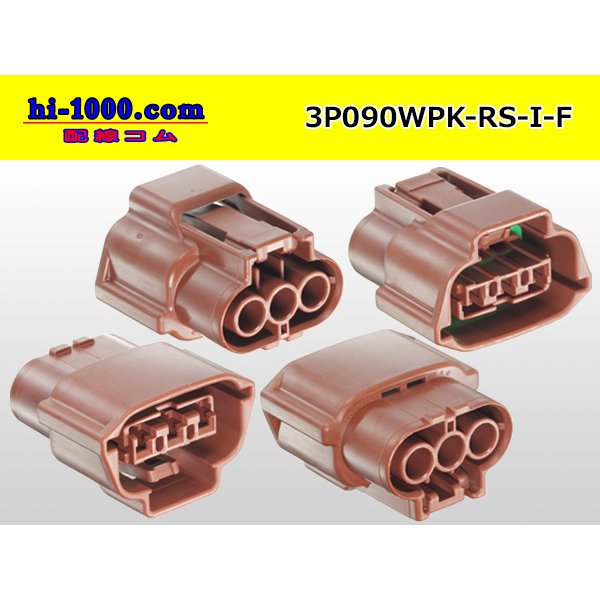

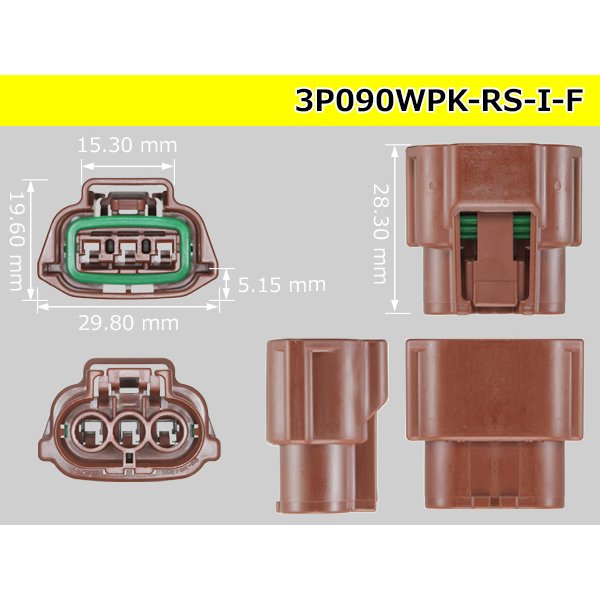

●[sumitomo] 090 type RS waterproofing series 3 pole "E type" F connector [brown] (no terminals) /3P090WP-RS-I-F-tr * [3P090WP-RS-I-F-tr]

＊It is customer this who was able to come by a search of "E03FBR".

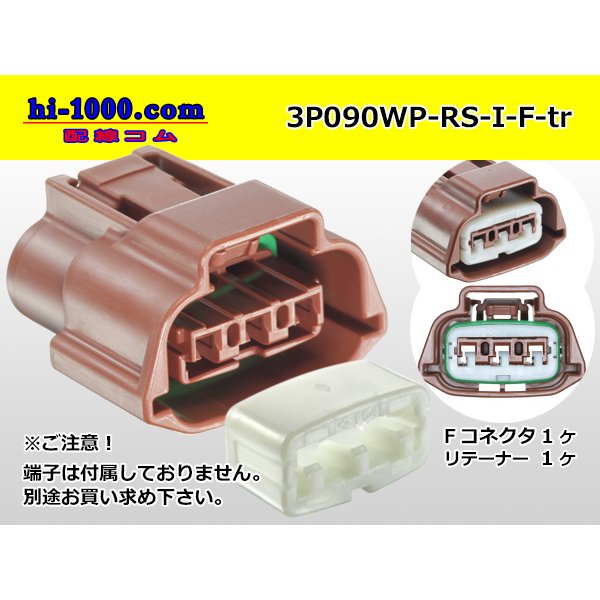

This product is F side connector and Retainer. Please buy F terminal, the wire seal separately.
In addition, there is not the setting of the M side maker of the counterpart.
＊Please be careful about the shapes of the positions of the convex enough.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.

It supports an electric wire of ↓ AVS0.85-1.25mm2. ↓
■F terminal + wire seal
"F090WP-91RS"

■F terminal simple substance
"F090WP-91RS-wr"
(0.85-1.25mm2)
■Wire seal 91 waterproofing series
"WS7165-0472-91RS"
Electric wire finish 2.0-2.4 millimeters outside diameter
■Dummy stopper
"7165-1131-RS-ST1"
It is necessary for the part without the terminal.

＊I do not do even existence about * counterpart connector to the customer who is looking for the connector of "the counterpart" whom this product fits in "Sumitomo Wiring Systems" which is a connector manufacturer.
But please be careful enough as it may be "goods of poor quality" such as the case that some counterparts are caught in on the Internet falling out when production precision takes a terminal to these badly.
