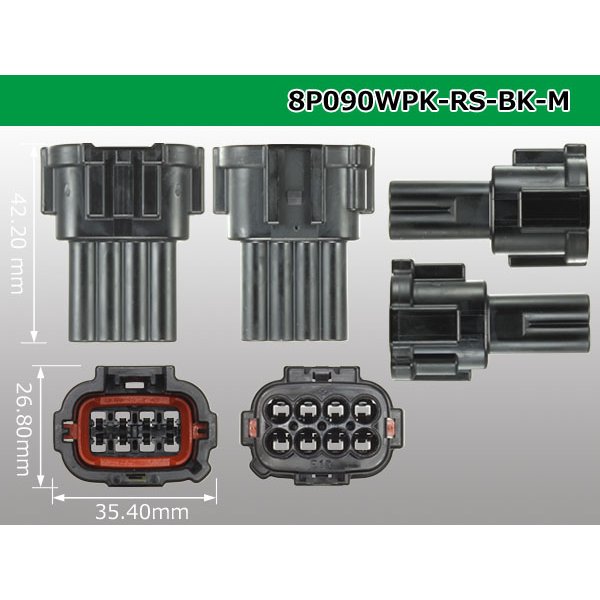

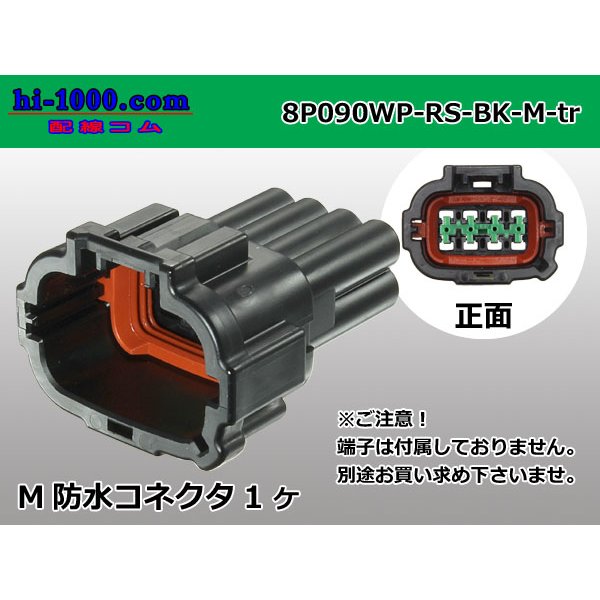

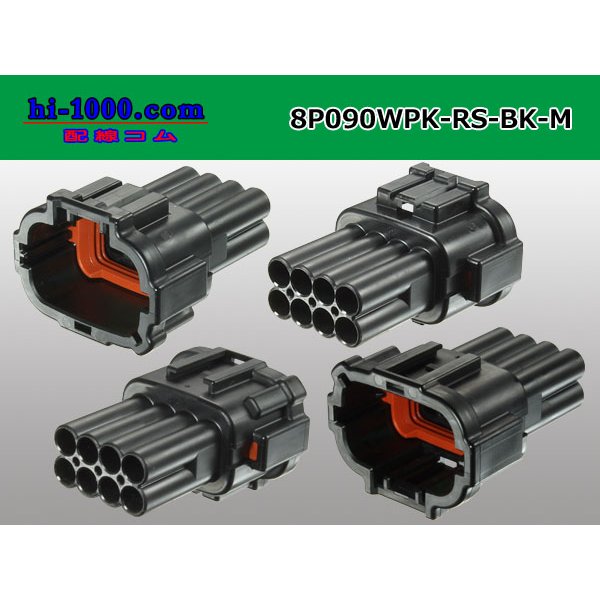

●[sumitomo] 090 type RS waterproofing series 8 pole M connector [black] (no terminals)/8P090WP-RS-BK-M-tr [8P090WP-RS-BK-M-tr]

This product is M side connector and リテーナー. Please buy M terminal, the wire seal separately.
In addition, the F side of the counterpart is not included, too; please buy it separately.

The corresponding terminal separately prepares it as follows.
Please find necessary amount.
It is available as a spare for the repair.

■M terminal + wire seal
"M090WP-91RS"

■M terminal simple substance
"M090WP-91RS-wr"
(0.85-1.25mm2)
■Wire seal 91 waterproofing series
"WS7165-0472-91RS"
Electric wire finish 2.0-2.4 millimeters outside diameter
■Dummy stopper
"7165-1131-RS-ST1"
It is necessary for the part without the terminal

A fitting counterpart is this
◆"Only a connector"
8P090WP-RS-BK-F-tr
